Moment Curvature Analysis of Section¶
[1]:
import matplotlib.pyplot as plt
import openseespy.opensees as ops
import opstool as opst
Create Section¶
Note
This step is not mandatory. You can also use your own section, as the subsequent analysis only requires the section tag.
Note that you need to set the model to 6DOF in 3D, because the program takes two axes into account.
Create any opensees material yourself as follows:
[2]:
def create_section():
ops.wipe()
ops.model("basic", "-ndm", 3, "-ndf", 6)
# materials
Ec = 3.55e7
# Vc = 0.2
# Gc = 0.5 * Ec / (1 + Vc)
fc = -32.4e3
ec = -2000.0e-6
ecu = 2.1 * ec
ft = 2.64e3
et = 107e-6
fccore = -40.6e3
eccore = -4079e-6
ecucore = -0.0144
Fys = 300.0e3
Es = 2.0e8
bs = 0.01
matTagC = 1
matTagCCore = 2
matTagS = 3
# for cover
ops.uniaxialMaterial("Concrete04", matTagC, fc, ec, ecu, Ec, ft, et)
# for core
ops.uniaxialMaterial("Concrete04", matTagCCore, fccore, eccore, ecucore, Ec, ft, et)
ops.uniaxialMaterial(
"Steel01",
matTagS,
Fys,
Es,
bs,
)
outlines = [[0, 0], [2, 0], [2, 2], [0, 2]]
coverlines = opst.pre.section.offset(outlines, d=0.05)
cover = opst.pre.section.create_polygon_patch(outlines, holes=[coverlines])
holelines = [[0.5, 0.5], [1.5, 0.5], [1.5, 1.5], [0.5, 1.5]]
core = opst.pre.section.create_polygon_patch(coverlines, holes=[holelines])
SEC = opst.pre.section.FiberSecMesh()
SEC.add_patch_group({"cover": cover, "core": core})
SEC.set_mesh_size({"cover": 0.1, "core": 0.1})
SEC.set_mesh_color({"cover": "gray", "core": "green"})
SEC.set_ops_mat_tag({"cover": matTagC, "core": matTagCCore})
SEC.mesh()
# add rebars
rebar_lines = opst.pre.section.offset(outlines, d=0.05 + 0.032 / 2)
SEC.add_rebar_line(
points=rebar_lines,
dia=0.02,
gap=0.1,
color="red",
ops_mat_tag=matTagS,
)
SEC.get_frame_props(display_results=False)
SEC.centring()
# sec.rotate(45)
return SEC
Create the section mesh, see opstool.pre.section.FiberSecMesh

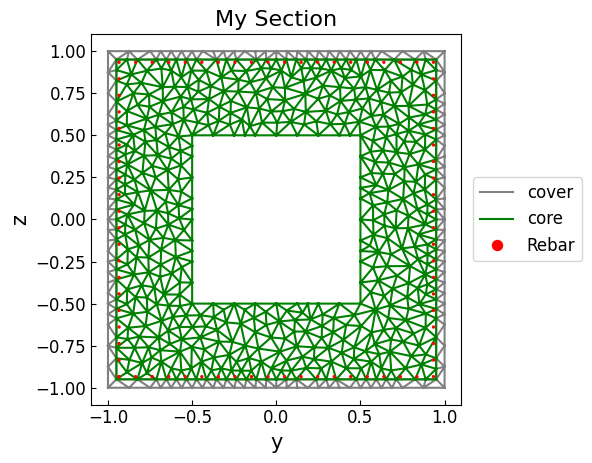

Plot the section mesh:
[3]:
SEC = create_section()
SEC.view(fill=False)
OPSTOOL :: The section My Section has been successfully meshed!
[3]:
<Axes: title={'center': 'My Section'}, xlabel='y', ylabel='z'>
Generate the OpenSeesPy commands to the domin (important!)
[4]:
sec_tag = 1
SEC.to_opspy_cmds(secTag=sec_tag, GJ=100000)
Monotonically Moment-Curvature Analysis¶
Now you can perform a moment-curvature analysis:
[5]:
MC = opst.anlys.MomentCurvature(sec_tag=1, axial_force=-20000)
MC.analyze(axis="y", max_phi=0.1, incr_phi=1e-4, limit_peak_ratio=0.8, smart_analyze=True)
🚀 OPSTOOL::SmartAnalyze::: 100%|██████████| 483/483 [00:00<00:00, 698.40 step/s]
Note: OpenSees LogFile has been generated in .SmartAnalyze-OpenSees.log.
MomentCurvature: 🎉 Successfully finished! 🎉

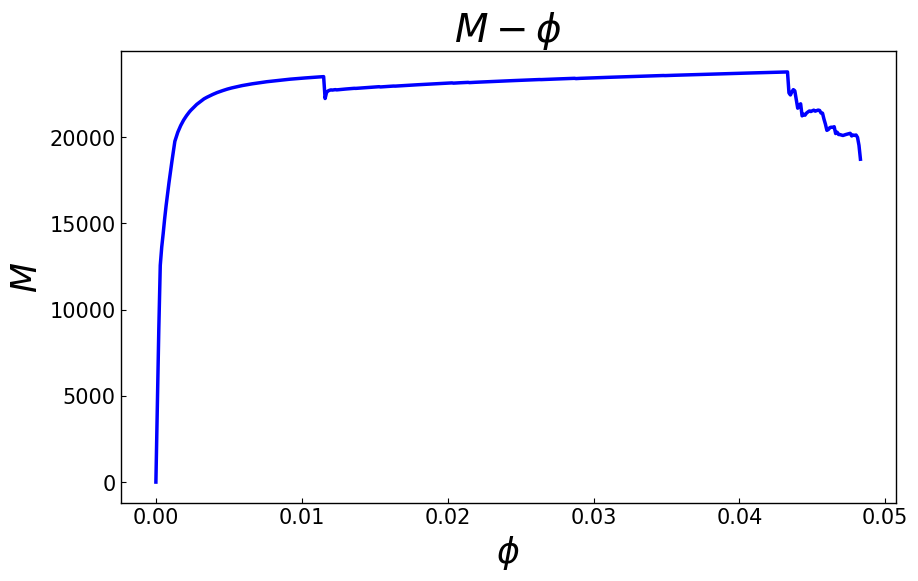

Plot the moment-curvature relationship:
[6]:
MC.plot_M_phi()
plt.show()
Plot all fiber stress-strain responses:
[7]:
MC.plot_fiber_responses()
plt.show()
[8]:
# Get moment-curvature data
phi, M = MC.get_M_phi()
# Get fiber responses data
fiber_data = MC.get_fiber_data()
fiber_data is an xarray.DataArray structure. "Steps" is the number of steps in the analysis. "Fibers" is the number of fibers in the section. "Properties" is the properties of the fibers, including “yloc”, “zloc”, “area”, “mat”, “stress”, “strain”.
[9]:
print("Fiber data:", fiber_data)
Fiber data: <xarray.DataArray 'FiberData' (Steps: 484, Fibers: 1199, Properties: 6)> Size: 28MB
array([[[-0.00000000e+00, 0.00000000e+00, 0.00000000e+00,
0.00000000e+00, -0.00000000e+00, -0.00000000e+00],
[-0.00000000e+00, -0.00000000e+00, 0.00000000e+00,
0.00000000e+00, -0.00000000e+00, -0.00000000e+00],
[ 0.00000000e+00, 0.00000000e+00, 0.00000000e+00,
0.00000000e+00, -0.00000000e+00, -0.00000000e+00],
...,
[-0.00000000e+00, -0.00000000e+00, 0.00000000e+00,
0.00000000e+00, -0.00000000e+00, -0.00000000e+00],
[-0.00000000e+00, -0.00000000e+00, 0.00000000e+00,
0.00000000e+00, -0.00000000e+00, -0.00000000e+00],
[-0.00000000e+00, -0.00000000e+00, 0.00000000e+00,
0.00000000e+00, -0.00000000e+00, -0.00000000e+00]],
[[-9.66666667e-01, 8.62500000e-01, 1.56250000e-03,
1.00000000e+00, -3.50440123e+03, -1.01445263e-04],
[-4.09375000e-01, -9.83333333e-01, 1.56250000e-03,
1.00000000e+00, -9.82063688e+03, -2.85838912e-04],
[ 8.62500000e-01, 9.66666667e-01, 1.56250000e-03,
1.00000000e+00, -3.15625701e+03, -9.16546559e-05],
...
[-7.37368421e-01, -9.34000000e-01, 3.14159265e-04,
3.00000000e+00, -3.38061099e+05, -2.05305497e-02],
[-8.35684211e-01, -9.34000000e-01, 3.14159265e-04,
3.00000000e+00, -3.37975358e+05, -2.04876792e-02],
[-9.34000000e-01, -9.34000000e-01, 3.14159265e-04,
3.00000000e+00, -3.37889617e+05, -2.04448087e-02]],
[[-9.66666667e-01, 8.62500000e-01, 1.56250000e-03,
1.00000000e+00, 0.00000000e+00, 6.59458641e-02],
[-4.09375000e-01, -9.83333333e-01, 1.56250000e-03,
1.00000000e+00, 0.00000000e+00, -2.34274053e-02],
[ 8.62500000e-01, 9.66666667e-01, 1.56250000e-03,
1.00000000e+00, 0.00000000e+00, 7.02553496e-02],
...,
[-7.37368421e-01, -9.34000000e-01, 3.14159265e-04,
3.00000000e+00, -3.38830395e+05, -2.09151973e-02],
[-8.35684211e-01, -9.34000000e-01, 3.14159265e-04,
3.00000000e+00, -3.38752809e+05, -2.08764043e-02],
[-9.34000000e-01, -9.34000000e-01, 3.14159265e-04,
3.00000000e+00, -3.38675223e+05, -2.08376114e-02]]])
Coordinates:
* Steps (Steps) int32 2kB 0 1 2 3 4 5 6 ... 477 478 479 480 481 482 483
* Fibers (Fibers) int32 5kB 0 1 2 3 4 5 ... 1193 1194 1195 1196 1197 1198
* Properties (Properties) <U6 144B 'yloc' 'zloc' 'area' ... 'stress' 'strain'
[10]:
fiber_data_last = fiber_data.isel(Steps=-1)
y = fiber_data_last.sel(Properties="yloc")
z = fiber_data_last.sel(Properties="zloc")
matTag = fiber_data_last.sel(Properties="mat")
stress = fiber_data_last.sel(Properties="stress")
strain = fiber_data_last.sel(Properties="strain")
[11]:
plt.figure()
s = plt.scatter(y, z, c=strain, s=50, cmap="rainbow")
plt.colorbar(s)
plt.xlabel("y")
plt.ylabel("z")
plt.title("Strain")
plt.show()
Extract limit state points based on fiber strain thresholds or other criteria.
[12]:
# Tensile steel fibers yield (strain=2e-3) for the first time
phiy, My = MC.get_limit_state(
matTag=3, # Steel material tag
threshold=2e-3,
)
# The concrete fiber in the confined area reaches the ultimate compressive strain 0.0144
phiu, Mu = MC.get_limit_state(matTag=2, threshold=-0.0144, peak_drop=False)
# or use peak_drop
# phiu, Mu = mc.get_limit_state(matTag=2,
# threshold=-0.0144,
# peak_drop=0.2
# )
print(f"Limit state 1: phi_y={phiy:.4f}, My={My:.2f}")
print(f"Limit state 2: phi_u={phiu:.4f}, Mu={Mu:.2f}")
Limit state 1: phi_y=0.0017, My=20680.00
Limit state 2: phi_u=0.0434, Mu=22576.93

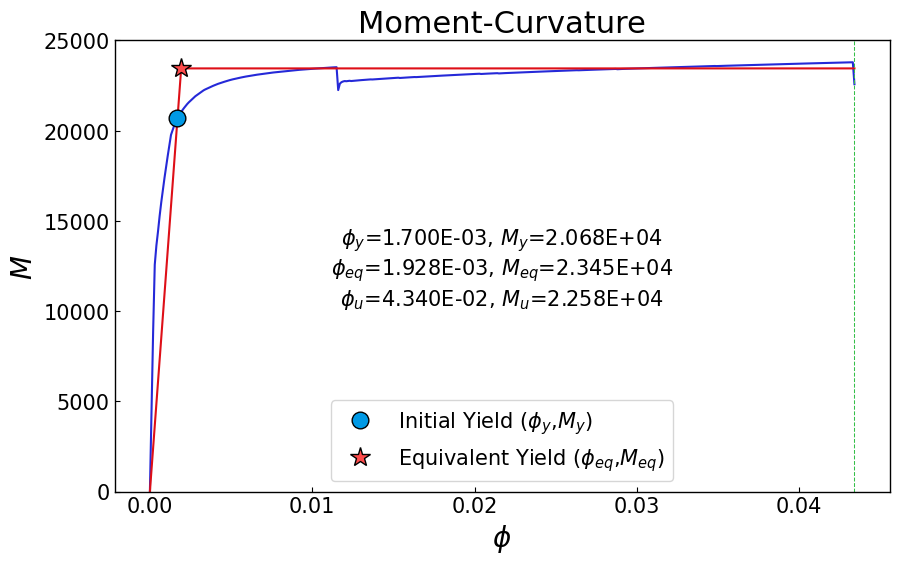

Equivalent linearization according to area:
[13]:
phi_eq, M_eq = MC.bilinearize(phiy, My, phiu, plot=True)
plt.show()
Cycle Moment-Curvature Analysis¶
[14]:
SEC = create_section()
sec_tag = 1
SEC.to_opspy_cmds(secTag=sec_tag, GJ=100000)
OPSTOOL :: The section My Section has been successfully meshed!
[15]:
MC = opst.anlys.MomentCurvature(sec_tag=1, axial_force=-20000)
MC.set_cycle_path(max_phi=0.04, n_cycle=20, n_hold=2)
MC.analyze(
axis="y",
cycle_analyze=True,
incr_phi=1e-3,
limit_peak_ratio=0.8,
smart_analyze=True,
)
🚀 OPSTOOL::SmartAnalyze::: 100%|██████████| 2850/2850 [00:04<00:00, 654.26 step/s]
Note: OpenSees LogFile has been generated in .SmartAnalyze-OpenSees.log.
MomentCurvature: 🎉 Successfully finished! 🎉
[16]:
MC.plot_M_phi()
plt.show()
