Interaction with sectionproperties¶
We can use any geometry or CompoundGeometry object in the sectionproperties package to construct a section.
[21]:
import numpy as np
import openseespy.opensees as ops
import opstool as opst
import matplotlib.pyplot as plt
Using the Section Library¶

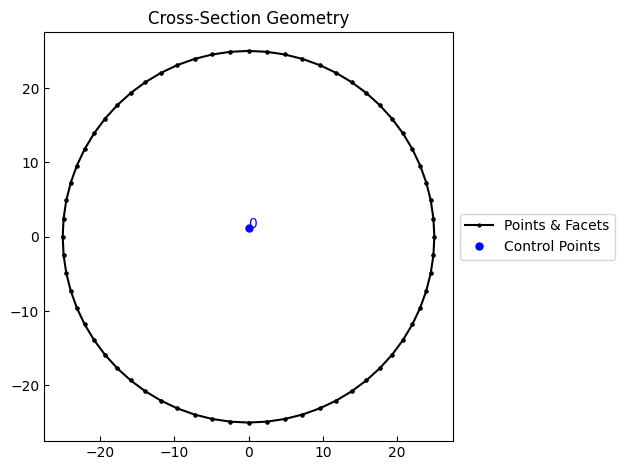

Circular Section¶
[22]:
from sectionproperties.analysis import Section
from sectionproperties.pre.library import circular_section
geom = circular_section(d=50, n=64)
geom.plot_geometry()
[22]:
<Axes: title={'center': 'Cross-Section Geometry'}>
[23]:
SEC_MESH = opst.pre.section.FiberSecMesh()
SEC_MESH.add_patch_group({"geom": geom})
SEC_MESH.set_mesh_size(mesh_size=5)
SEC_MESH.set_ops_mat_tag(dict(geom=1))
SEC_MESH.mesh()
SEC_MESH.view()
plt.show()
OPSTOOL :: The section My Section has been successfully meshed!
Tapered Flange Channel Section¶
[24]:
from sectionproperties.pre.library import tapered_flange_channel
geom = tapered_flange_channel(
d=10,
b=3.5,
t_f=0.575,
t_w=0.475,
r_r=0.575,
r_f=0.4,
alpha=8,
n_r=16,
)
fig, ax = plt.subplots()
SEC_MESH = opst.pre.section.FiberSecMesh()
SEC_MESH.add_patch_group({"geom": geom})
SEC_MESH.set_mesh_size(mesh_size=0.5)
SEC_MESH.set_ops_mat_tag(dict(geom=1))
SEC_MESH.mesh()
SEC_MESH.view(ax=ax)
ax.set_aspect('equal')
plt.show()
OPSTOOL :: The section My Section has been successfully meshed!

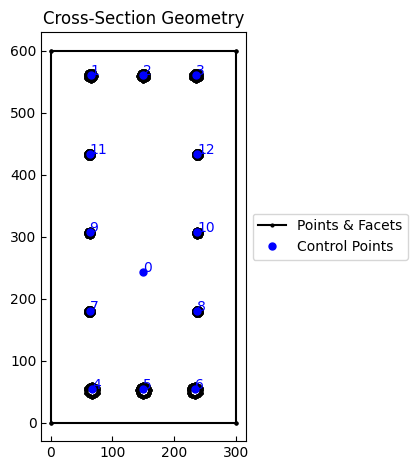

Rectangular Concrete Section¶
[25]:
from sectionproperties.pre import Material
from sectionproperties.pre.library import concrete_rectangular_section
# define the concrete material
concrete = Material(
name="Concrete",
elastic_modulus=30.1e3,
poissons_ratio=0.2,
density=2.4e-6,
yield_strength=32,
color="lightgrey",
)
# define the steel material
steel = Material(
name="Steel",
elastic_modulus=200e3,
poissons_ratio=0.3,
yield_strength=500,
density=7.85e-6,
color="grey",
)
# create the geometry
geom = concrete_rectangular_section(
d=600,
b=300,
dia_top=16,
area_top=200,
n_top=3,
c_top=32,
dia_bot=20,
area_bot=310,
n_bot=3,
c_bot=42,
dia_side=12,
area_side=110,
n_side=3,
c_side=57,
n_circle=16,
conc_mat=concrete,
steel_mat=steel,
)
geom.plot_geometry()
[25]:
<Axes: title={'center': 'Cross-Section Geometry'}>
[26]:
print(len(geom.geoms))
13
[27]:
concrete = geom.geoms[0]
steel = geom.geoms[1:]
steel = sum(steel[1:], steel[0])
concrete.plot_geometry()
steel.plot_geometry()
[27]:
<Axes: title={'center': 'Cross-Section Geometry'}>
[28]:
SEC_MESH = opst.pre.section.FiberSecMesh()
SEC_MESH.add_patch_group({"concrete": concrete, "steel": steel})
SEC_MESH.set_mesh_size(mesh_size={"concrete": 20, "steel": 10})
SEC_MESH.set_ops_mat_tag({"concrete": 1, "steel": 2})
SEC_MESH.set_mesh_color({"concrete": "gray", "steel": "orange"})
SEC_MESH.mesh()
fig, ax = plt.subplots()
SEC_MESH.view(ax=ax)
ax.set_aspect('equal')
plt.show()
OPSTOOL :: The section My Section has been successfully meshed!
[29]:
SEC_MESH.get_frame_props(Eref=30.1e3, display_results=True)
Frame Section Properties ┏━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓ ┃ Symbol ┃ Value ┃ Definition ┃ ┡━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┩ │ A │ 1.924E+05 │ Cross-sectional area │ │ centroid │ (1.500E+02, 2.979E+02) │ Elastic centroid │ │ Iy │ 5.991E+09 │ Moment of inertia y-axis │ │ Iz │ 1.419E+09 │ Moment of inertia z-axis │ │ Iyz │ 3.438E-01 │ Product of inertia │ │ Wyt │ 1.983E+07 │ Section moduli of top fibres y-axis │ │ Wyb │ 2.011E+07 │ Section moduli of bottom fibres y-axis │ │ Wzt │ 9.459E+06 │ Section moduli of top fibres z-axis │ │ Wzb │ 9.459E+06 │ Section moduli of bottom fibres z-axis │ │ J │ 3.762E+09 │ Torsion constant │ │ phi │ 0.000E+00 │ Principal axis angle │ │ rho_rebar │ 0.000E+00 │ Ratio of reinforcement │ └───────────┴────────────────────────┴────────────────────────────────────────┘
[29]:
{'A': 192361.49501661223,
'centroid': (149.99999999999966, 297.92601657904174),
'Iy': 5991381399.499234,
'Iz': 1418834866.2194405,
'Iyz': 0.34375,
'Wyt': 19834152.321386393,
'Wyb': 20110299.42364795,
'Wzt': 9458899.108129581,
'Wzb': 9458899.108129622,
'J': 3762045314.8805337,
'phi': 0.0,
'rho_rebar': 0.0}
super_t_girder_section¶
[30]:
from sectionproperties.pre.library import super_t_girder_section
from sectionproperties.pre.library import rectangular_section
super_t = super_t_girder_section(girder_type=5, w=2100)
slab = rectangular_section(d=180, b=2100).shift_section(x_offset=-1050,
y_offset=75)
(super_t + slab).plot_geometry()
[30]:
<Axes: title={'center': 'Cross-Section Geometry'}>
[31]:
SEC_MESH = opst.pre.section.FiberSecMesh()
SEC_MESH.add_patch_group({"super_t": super_t, "slab": slab})
SEC_MESH.set_mesh_size(mesh_size={"super_t": 100, "slab": 100})
SEC_MESH.set_ops_mat_tag({"super_t": 1, "slab": 1})
SEC_MESH.set_mesh_color({"super_t": "gray", "slab": "orange"})
SEC_MESH.mesh()
fig, ax = plt.subplots()
SEC_MESH.view(ax=ax)
ax.set_aspect('equal')
plt.show()
OPSTOOL :: The section My Section has been successfully meshed!
Geometric operations¶
[32]:
from sectionproperties.pre.library import rectangular_section
from sectionproperties.pre import Material
# create a timber material
timber = Material(
name="Timber",
elastic_modulus=8e3,
poissons_ratio=0.35,
density=6.5e-7,
yield_strength=20,
color="burlywood",
)
steel = Material(
name="Steel",
elastic_modulus=200e3, # N/mm^2 (MPa)
poissons_ratio=0.3, # unitless
density=7.85e-6, # kg/mm^3
yield_strength=500, # N/mm^2 (MPa)
color="grey",
)
# create individual geometries with material properties applied
beam = rectangular_section(d=35, b=170, material=timber)
plate1 = rectangular_section(d=35, b=16, material=steel)
plate2 = rectangular_section(d=35, b=16, material=steel)
plate_left = plate1.align_to(other=beam, on="left")
plate_right = plate2.align_to(other=beam, on="right")
plate = plate_left + plate_right
# combine geometries, maintaining assigned materials
(beam + plate).plot_geometry()
[32]:
<Axes: title={'center': 'Cross-Section Geometry'}>

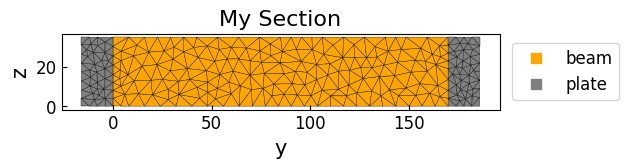

[33]:
SEC_MESH = opst.pre.section.FiberSecMesh()
SEC_MESH.add_patch_group({"beam": beam, "plate": plate})
SEC_MESH.set_mesh_size({"beam": 8, "plate": 5})
SEC_MESH.set_ops_mat_tag({"beam": 1, "plate": 111})
SEC_MESH.set_mesh_color({"beam": "orange", "plate": "gray"})
SEC_MESH.mesh()
fig, ax = plt.subplots()
SEC_MESH.view(ax=ax)
ax.set_aspect('equal')
plt.show()
OPSTOOL :: The section My Section has been successfully meshed!
[34]:
frame_props = SEC_MESH.get_frame_props(Eref=8e3, display_results=True)
Frame Section Properties ┏━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓ ┃ Symbol ┃ Value ┃ Definition ┃ ┡━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┩ │ A │ 3.395E+04 │ Cross-sectional area │ │ centroid │ (8.500E+01, 1.750E+01) │ Elastic centroid │ │ Iy │ 3.466E+06 │ Moment of inertia y-axis │ │ Iz │ 2.571E+08 │ Moment of inertia z-axis │ │ Iyz │ -6.104E-04 │ Product of inertia │ │ Wyt │ 1.980E+05 │ Section moduli of top fibres y-axis │ │ Wyb │ 1.980E+05 │ Section moduli of bottom fibres y-axis │ │ Wzt │ 2.546E+06 │ Section moduli of top fibres z-axis │ │ Wzb │ 2.546E+06 │ Section moduli of bottom fibres z-axis │ │ J │ 4.608E+06 │ Torsion constant │ │ phi │ -9.000E+01 │ Principal axis angle │ │ rho_rebar │ 0.000E+00 │ Ratio of reinforcement │ └───────────┴────────────────────────┴────────────────────────────────────────┘
[35]:
SEC_MESH.rotate(theta=90, remesh=True)
fig, ax = plt.subplots()
SEC_MESH.view(ax=ax)
ax.set_aspect('equal')
plt.show()
OPSTOOL :: The section My Section has been successfully remeshed!
[36]:
frame_props90 = SEC_MESH.get_frame_props(Eref=8e3, display_results=True)
Frame Section Properties ┏━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓ ┃ Symbol ┃ Value ┃ Definition ┃ ┡━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┩ │ A │ 3.395E+04 │ Cross-sectional area │ │ centroid │ (8.500E+01, 1.750E+01) │ Elastic centroid │ │ Iy │ 2.571E+08 │ Moment of inertia y-axis │ │ Iz │ 3.466E+06 │ Moment of inertia z-axis │ │ Iyz │ -6.714E-04 │ Product of inertia │ │ Wyt │ 2.546E+06 │ Section moduli of top fibres y-axis │ │ Wyb │ 2.546E+06 │ Section moduli of bottom fibres y-axis │ │ Wzt │ 1.980E+05 │ Section moduli of top fibres z-axis │ │ Wzb │ 1.980E+05 │ Section moduli of bottom fibres z-axis │ │ J │ 4.609E+06 │ Torsion constant │ │ phi │ 0.000E+00 │ Principal axis angle │ │ rho_rebar │ 0.000E+00 │ Ratio of reinforcement │ └───────────┴────────────────────────┴────────────────────────────────────────┘
