Fluid-structure interaction¶

This example originates from the GitHub repository maintained by Professor Quan Gu of Xiamen University. Refer to: OpenSeesXMU

[1]:

import matplotlib.pyplot as plt
import openseespy.opensees as ops

import opstool as opst

[2]:

ops.wipe()
ops.model("basic", "-ndm", 3, "-ndf", 3)
ops.node(1, 1.0, 0.0, 0.0)
ops.node(2, 1.0, 1.0, 0.0)
ops.node(3, 0.0, 1.0, 0.0)
ops.node(4, 0.0, 0.0, 0.0)
ops.node(5, 1.0, 0.0, 1.0)
ops.node(6, 1.0, 1.0, 1.0)
ops.node(7, 0.0, 1.0, 1.0)
ops.node(8, 0.0, 0.0, 1.0)

[3]:

ops.nDMaterial("TruncatedDP", 1, 3, 2400000, 14957000000.0, 17677000000.0, 0.11, 26614000.0, -2068400.0)
ops.element("bbarBrick", 1, 1, 2, 3, 4, 5, 6, 7, 8, 1, 0, 0, -23520000.0)

LinearCap nDmaterial - Written: Quan Gu and Zhijian Qiu

[4]:

ops.element("VS3D4", 5, 3, 4, 8, 7, 25000000000.0, 100000000000.0, 2600, 475, 1.33, 0.67)
ops.element("VS3D4", 6, 1, 2, 6, 5, 25000000000.0, 100000000000.0, 2600, 475, 1.33, 0.67)
ops.element("VS3D4", 7, 1, 2, 3, 4, 25000000000.0, 100000000000.0, 2600, 475, 1.33, 0.67)
ops.element("VS3D4", 8, 1, 5, 8, 4, 25000000000.0, 100000000000.0, 2600, 475, 1.33, 0.67)

[5]:

ops.model("basic", "-ndm", 3, "-ndf", 1)
ops.node(9, 1.0, 1.0, 0.0)
ops.node(10, 1.0, 2.0, 0.0)
ops.node(11, 0.0, 2.0, 0.0)
ops.node(12, 0.0, 1.0, 0.0)
ops.node(13, 1.0, 1.0, 1.0)
ops.node(14, 1.0, 2.0, 1.0)
ops.node(15, 0.0, 2.0, 1.0)
ops.node(16, 0.0, 1.0, 1.0)
ops.nDMaterial("AcousticMedium", 2, 2070000000.0, 1000)
ops.element("AC3D8", 3, 9, 10, 11, 12, 13, 14, 15, 16, 2)
ops.element("ASI3D8", 2, 2, 3, 6, 7, 9, 12, 13, 16)
ops.element("AV3D4", 4, 10, 11, 15, 14, 2)
ops.fix(13, 1)
ops.fix(14, 1)
ops.fix(15, 1)
ops.fix(16, 1)

[6]:

fig = opst.vis.plotly.plot_model()
fig.write_html("model.html", full_html=False, include_plotlyjs="cdn")
fig.show()

Data type cannot be displayed: application/vnd.plotly.v1+json

[7]:

ops.timeSeries("Path", 1, "-dt", 0.01, "-filePath", "elcentro.txt", "-factor", 3)
ops.pattern("Plain", 111, 1)
ops.load(1, 1000000.0, 0, 1000000.0)
ops.load(2, 1000000.0, 0, 1000000.0)
ops.load(3, 1000000.0, 0, 1000000.0)
ops.load(4, 1000000.0, 0, 1000000.0)

[8]:

ops.wipeAnalysis()
ops.constraints("Transformation")
ops.system("BandGeneral")
ops.numberer("Plain")
ops.test("NormDispIncr", 1e-05, 20, 0)
ops.algorithm("Newton")
ops.integrator("Newmark", 0.5, 0.25)
ops.analysis("Transient")

[9]:

ODB = opst.post.CreateODB(odb_tag="FSI", project_gauss_to_nodes="copy")

N = 1600
for i in range(N):
    ops.analyze(1, 0.01)
    ODB.fetch_response_step()
ODB.save_response()
ops.wipeAnalysis()
print("Dynamic analysi done...")

OPSTOOL ::  All responses data with _odb_tag = FSI saved in .opstool.output/RespStepData-FSI.nc!

Dynamic analysi done...

[10]:

node_resp = opst.post.get_nodal_responses(odb_tag="FSI")

OPSTOOL ::  Loading all response data from .opstool.output/RespStepData-FSI.nc ...

[11]:

node5_resp = node_resp.sel(nodeTags=5)
node6_resp = node_resp.sel(nodeTags=6)

[12]:

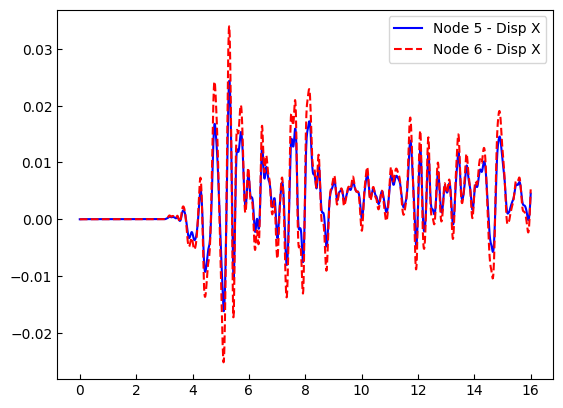

plt.plot(node5_resp.time, node5_resp["disp"].sel(DOFs="UX"), "b-", label="Node 5 - Disp X")
plt.plot(node6_resp.time, node6_resp["disp"].sel(DOFs="UX"), "r--", label="Node 6 - Disp X")
plt.legend()
plt.show()

../../../_images/examples_post_FSI-GUQUAN_src_14_0.png

[13]:

plt.plot(node5_resp.time, node5_resp["accel"].sel(DOFs="UX"), "b-", label="Node 5 - Accel X")
plt.plot(node6_resp.time, node6_resp["accel"].sel(DOFs="UX"), "r--", label="Node 6 - Accel X")
plt.legend()
plt.show()

../../../_images/examples_post_FSI-GUQUAN_src_15_0.png

[14]:

opst.post.get_element_responses(odb_tag="FSI", ele_type="Brick")

OPSTOOL ::  Loading Brick response data from .opstool.output/RespStepData-FSI.nc ...
