Frame Element Responses (Pyvista)

import openseespy.opensees as ops
import opstool as opst
import opstool.vis.pyvista as opsvis

opst.load_ops_examples("Frame3D2")
ops.timeSeries("Linear", 1)
ops.pattern("Plain", 1, 1)
ops.load(6, 10, 0.0, 0.0, 0.0, 0.0, 0.0)
ops.load(8, 10, 0.0, 0.0, 0.0, 0.0, 0.0)
for etag in [5, 6, 7, 8, 15, 16, 17, 18, 19, 20, 21]:
    ops.eleLoad("-ele", etag, "-type", "-beamUniform", 0.0, -10)

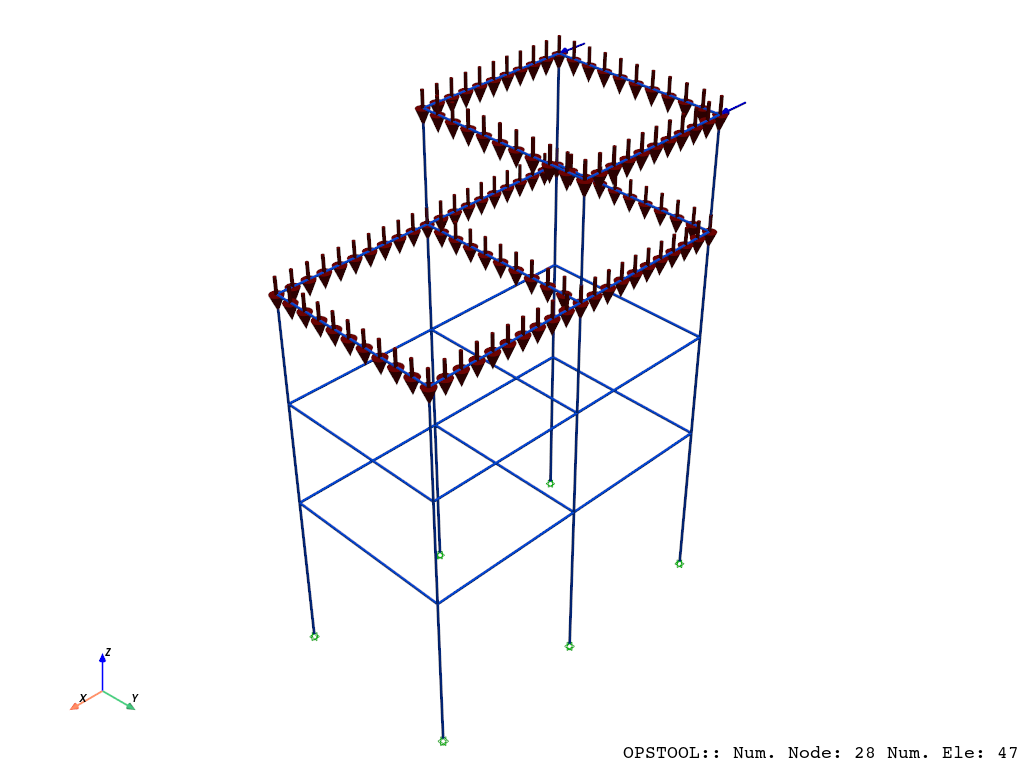

opsvis.set_plot_props(point_size=0, line_width=3, notebook=True)
fig = opsvis.plot_model(show_nodal_loads=True, show_ele_loads=True)
fig.show(jupyter_backend="jupyterlab")
# fig.show()

OPSTOOL ::  Model data has been saved to _OPSTOOL_ODB/ModelData-None.nc!

ops.constraints("Transformation")
ops.numberer("RCM")
ops.system("BandGeneral")
ops.test("NormDispIncr", 1.0e-8, 6, 2)
ops.algorithm("Linear")
ops.integrator("LoadControl", 0.1)
ops.analysis("Static")

ODB = opst.post.CreateODB(odb_tag=1)
for i in range(10):
    ops.analyze(1)
    ODB.fetch_response_step()
ODB.save_response()

OPSTOOL ::  All responses data with odb_tag = 1 saved in _OPSTOOL_ODB/RespStepData-1.nc!

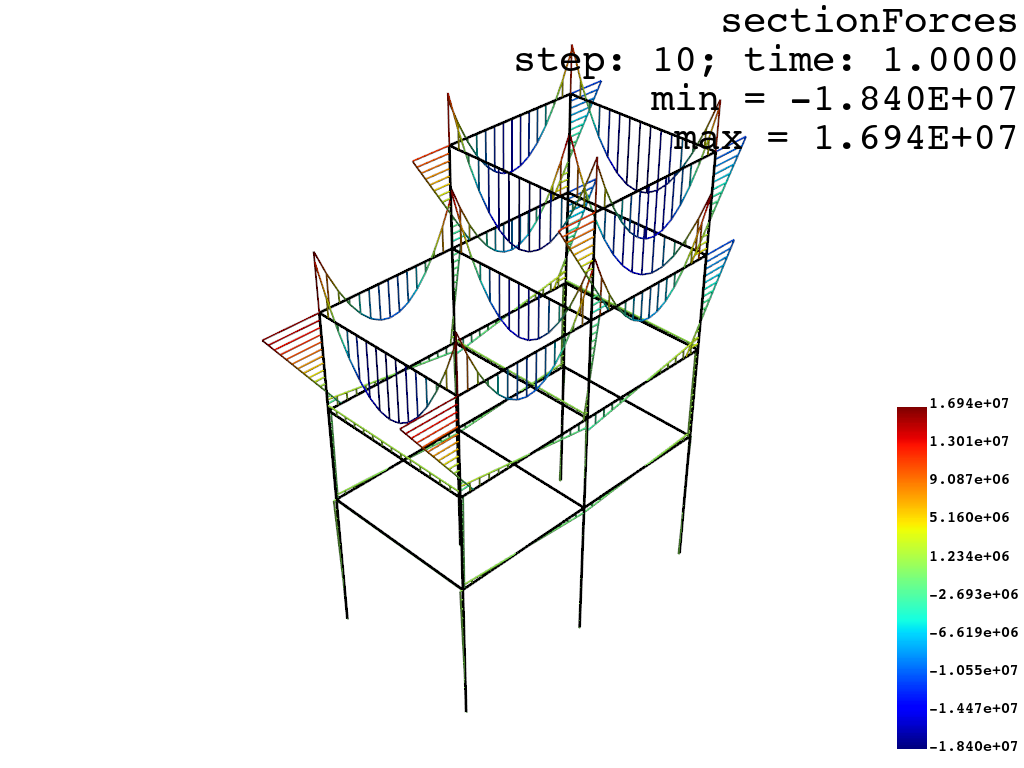

opsvis.set_plot_colors(frame="black", cmap="jet")


fig = opsvis.plot_frame_responses(
    odb_tag=1,
    slides=False,
    resp_type="sectionForces",
    resp_dof="My",
    scale=3.0,
    show_values=False,
    line_width=2,
)
fig.show(jupyter_backend="jupyterlab")
# fig.show()

OPSTOOL ::  Loading response data from _OPSTOOL_ODB/RespStepData-1.nc ...
